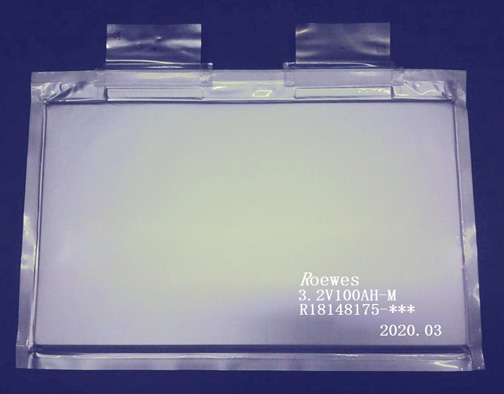

High-rate, high temperature polymer lithium batteries
High-rate, high temperature polymer lithium batteries LiFeP04
Technology and application areas:
Nominal voltage: single cell voltage 3.7V;
Capacity: According to different market segments product selection and design requirements;
Features: high capacity, high-rate, long cycle life, good low temperature performance, environmental protection, safety and excellent performance;
Practical areas: storage batteries, portable power, battery electric vehicles, aerospace, marine batteries, and other fields.
High-rate, high temperature polymer lithium batteries Specifications Table LiFeP04
电芯型号 | 外型尺寸 | 内阻 (mΩ) | 容量 (mAH) | 电压 （V） | 温度（℃） | 下载 | |||
长（mm） | 宽（mm） | 高度（mm） | 低温 | 高温 | |||||
IFR806069 | 68.9±0.1 | 59±0.1 | 7.9±0.3 | 3 | 60000 | 3.2 | -40 | 80 | |
IFR18120350 | 349.9±0.1 | 119.9±0.1 | 17.7±0.3 | 2 | 50000 | 3.2 | -40 | 80 | |
IFR25120380 | 379.9±0.1 | 119.9±0.1 | 24.7±0.3 | 2 | 100000 | 3.2 | -40 | 80 | |
IFR683496 | 95.9±0.1 | 33±0.1 | 6.7±0.3 | 6 | 2200 | 3.7 | -40 | 65 | |
IFR9060125 | 124.9±0.1 | 59±0.1 | 8.7±0.3 | 6 | 3800 | 3.7 | -40 | 65 | |
