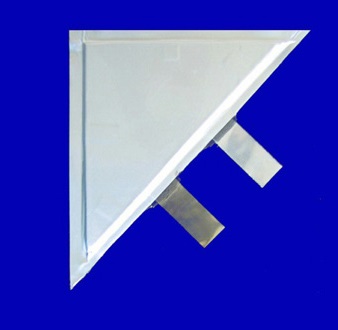

High magnification power polymer type batteries
Technology and application areas:
Nominal voltage: single cell voltage 3.7V;
Capacity: According to different market segments product selection and design requirements;
Features: high capacity, high-rate, long cycle life, good low temperature performance, environmental protection, safety and excellent performance;
Practical areas: model aircraft battery, portable power, instrumentation, lighting batteries, power tool batteries and other fields.
High magnification power polymer batteries type specification sheet
电芯型号 | 外型尺寸 | 内阻 （mΩ） | 容量 (mAH) | 电压 （V） | 温度（℃） | 重量 （g） | 下载 | |||
长（mm） | 宽（mm） | 高度（mm） | 低温 | 高温 | ||||||
ICR053048 | 47.9±0.1 | 29±0.1 | 4.7±0.3 | 10 | 800 | 3.7 | -40 | 75 | ||
ICR053470 | 69.9±0.1 | 33±0.1 | 4.7±0.3 | 8 | 1000 | 3.7 | -30 | 75 | ||
ICR606069 | 69.9±0.1 | 59±0.1 | 5.7±0.3 | 6 | 4000 | 3.7 | -40 | 75 | ||
ICR806069 | 68.9±0.1 | 59±0.1 | 7.7±0.3 | 8 | 6000 | 3.7 | -40 | 75 | ||
ICR683496 | 95.9±0.1 | 33±0.1 | 6.7±0.3 | 6 | 2200 | 3.7 | -40 | 65 | ||
ICR9060125 | 124.9±0.1 | 59±0.1 | 8.7±0.3 | 6 | 4200 | 3.7 | -40 | 65 | ||
